Highlights of the Series.
Efficiency to the i stands for: innovation, integration, intuitive operation, and intelligent product design. Next-level of dust-tight machine design, system compatibility and digital connectivity.
SmartInterface
Real-time data, at all times, and independent of location. The SmartInterface is a server-based application enabling the monitoring of tablet press production processes via mobile end devices.
RFID Operator Login
This contactless transceiver system makes it possible to automatically identify machine process components and compare them with preset recipes. The new i Series can also be easily scaled, enabling changes to mechanical settings entirely in line with recipes. The tablet scraper, for example, can be adjusted reproducibly via a coding element. This facilitates operation, improves precision while adjusting, and increases process stability.
RFID Operator Login
In order to further improve process reliability and avoid operating errors, the tablet presses in the new i Series feature an RFID option (Radio Frequency Identification).
Containment Guard
The specifications of the Containment Guard offer a template for conducting qualification measurements and a collection of empirical knowledge on operating tablet presses in the containment environment for exposure measurements in the pharmaceutical production environment.
Containment Guard
The Containment Guard is the first quality certificate which establishes the retention efficiency of containment tableting systems even before the conclusive risk test conducted by the operator.
Innovative turret changeover
After the operator has moved the compression stations into the parking position, he can change the turret with the aid of a mechanism integrated into the machine. The innovative turret changeover principle, together with Fette Compacting’s TRI.EASY design, ensures minimal handling effort and uniquely simple operation.
Innovative turret changeover
The F20i is equipped with an innovative turret changeover system. The turret can be removed for product changes in just a few minutes.
Compact.
In any size.
The compact and space-saving tablet presses in the i Series are available as single and double rotary presses and can be used for single- and double layer tablets.
F10i
The single rotary press with a technology platform which is compatible with “Pharmaceutical production 4.0”.
Download
Special features
Compatible with SmartInterface
Cross-generation system compatibility
Available as a containment option
RFID operator login
HMI-Software Visual 8
Uniform interface for process equipment
Stations
45
max.
Tablet output
324,000
max. per h
Tablet size
25 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 1,875 mm | 1,112 mm | 925 mm | approx. 2,100 kg |
F20i
The allrounder of the new i generation with an innovative turret changeover system.
Download
Special features
Innovative turret changeover
Compatible with SmartInterface
Cross-generation system compatibility
Available as a containment option
RFID operator login
HMI-Software Visual 8
Uniform interface for process equipment
Stations
66
max.
Tablet output
475.200
max. per h
Tablet size
25 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,022 mm | 1,220 mm | 1,220 mm | approx. 3,500 kg |
F30i
The double rotary press in the new i Series. Designed for maximum output.
Download
Special features
Compatible with SmartInterface
Cross-generation system compatibility
Available as a containment option
RFID operator login
HMI-Software Visual 8
Uniform interface for process equipment
Stations
110
max.
Tablet output
1,584,000
max. per h
Tablet size
25 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,030 mm | 1,394 mm | 1,394 mm | approx. 4,600 kg |

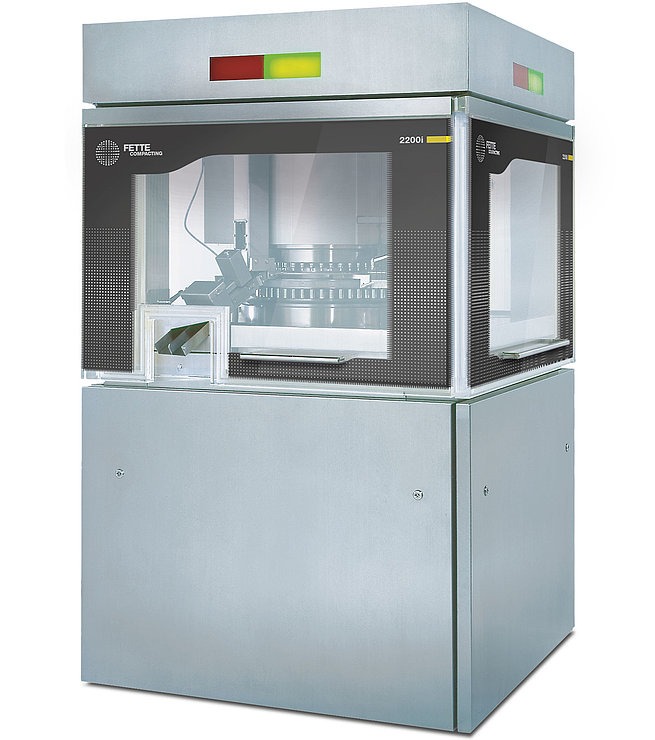

2200i
The high-performance machine for single-layer tablets with increased output. Particularly efficient in standardized processes.
Download
Special features
Mechanical manual turret clamping system
Stations
66
max.
Tablet output
457,200
max. per h
Tablet size
34 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,022 mm | 1,220 mm | 1,220 mm | approx. 3,200 kg |
2090i
The single rotary press featuring tried-and-tested technology and a high degree of flexibility.
Download
Special features
Exchangeable segment and die table packages (30 to 66 punch stations)
Stations
66
max.
Tablet output
475,200
max. per h
Tablet size
25 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,022 mm | 1,220 mm | 1,220 mm | approx. 3,300 kg |

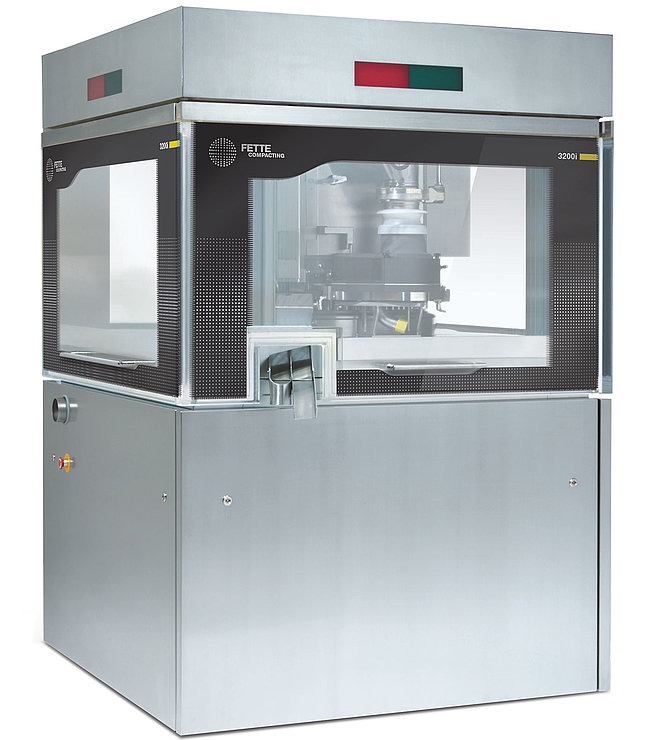

3200i
Key player with optimal price/performance ratio.
Download
Special features
Both mono-and double-layer tablets can be produced efficiently with this machine
Stations
110
max.
Tablet output
1,584,000
max. per h
Tablet size
34 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,024 mm | 1,390 mm | 1,390 mm | approx. 4,400 kg |
3090i
Key player for large production volumes
Download
Special features
Automatic turret clamping system and maintenance-free servo motors
Stations
110
max.
Tablet output
1,584,000
max. per h
Tablet size
25 mm
max.
Dimensions and Weight
| Height | Width | Depth | Weight |
| 2,024 mm | 1,390 mm | 1,390 mm | approx. 4,600 kg |
What is and will
continue to be important.
Articles and reports on current developments and technological innovations. For even more efficiency!
